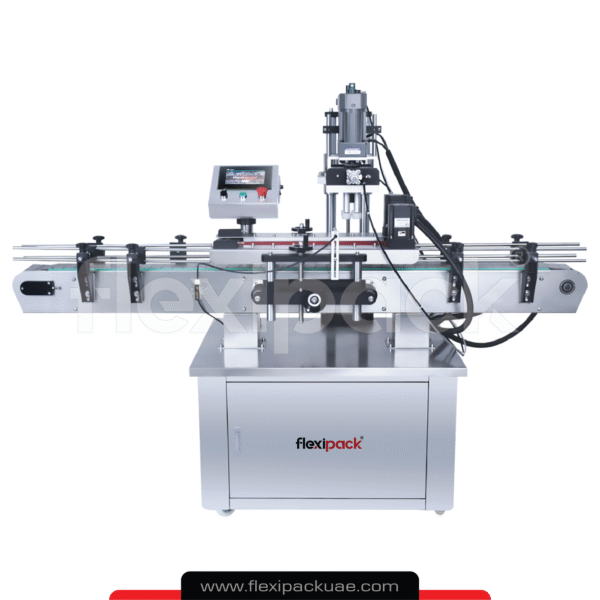

AUTOMATIC 1 HEAD CAPPING MACHINE

🟥 Description:

The main structure is made of durable 304 stainless steel. The machine is controlled by a touch screen, parameters can be set on the touch screen very easily. It is very flexible for different sizes of round bottles, square bottles, and flat bottles by adjustment. Capping time can be set to fit different caps and different levels of tightness. It is very easy to existing line upgrade.

Features:

🔸 Controlled by PLC & touch screen.

🔸Adjustable for different sizes and shapes of caps and bottles

🔸Bottle belt holding system.

Technical Specifications

Model FTM-CM4R
Capping speed 10-25 bottles/min.
Bottle height 50-300mm
Cap dia. 25-45mm (can be customized)
Capping Torsion 4-9kgf/cm
Air pressure 0.4-0.6Mpa
Max. power 300W
Voltage 220V, 50/60Hz
