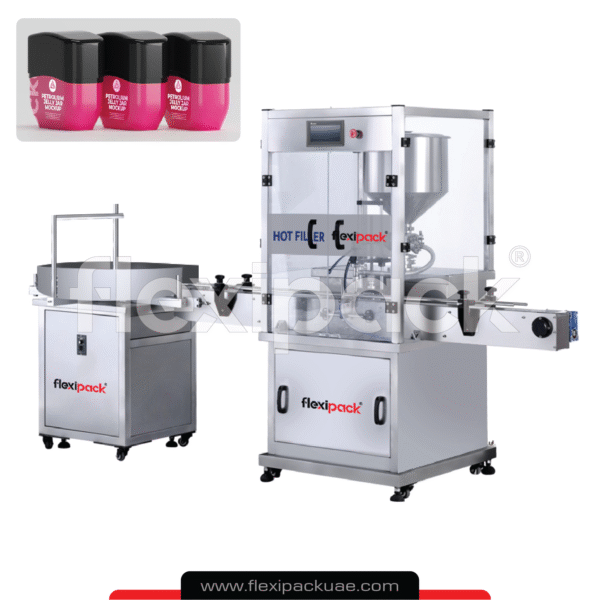

AUTOMATIC 2 NOZZLE HOT LIQUID FILLING MACHINE

🟥 Description:

Our Automatic Hot Liquid Filling Machine is a specialized filling equipment designed to fill high viscosity product into bottle or jar such as sauce, paste, honey, petroleum jelly, face cream, gel, etc.

🟥 Features:

  •  Jacketed Hopper with stirrer.
  •  Neck Holder.
  •  Nozzle Diving Function.

Technical Specifications

Model FTM-PF500-2T FTM-PF1000-2T
Measuring Device Piston Pump Piston Pump
Filling Range 50ml – 500ml 100ml – 1000ml
Output 20-40 Bottles/min 10-40 Bottles/min
Filling Accuracy ±1%
Hopper Volume 100ltr double jacket with hot water circulation
Mixing Paddle Mixer 180W
Voltage 380V 3Phase 50Hz
Temperature Upto 90deg Celsius
Air required 8CFM @ 6Bar Pressure
