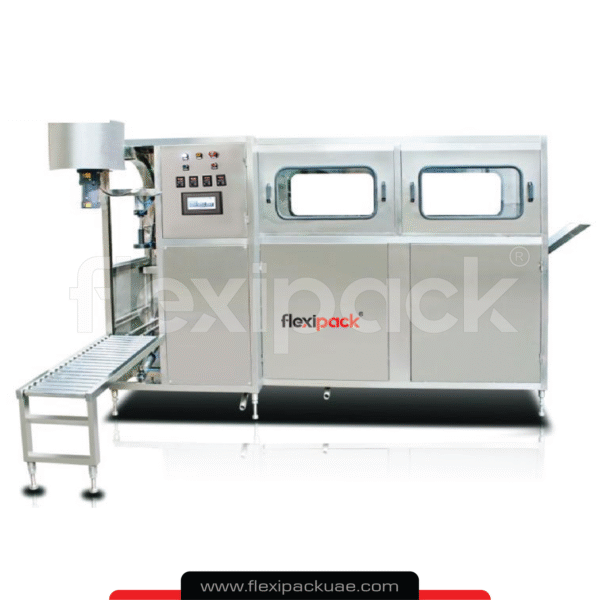

AUTOMATIC 3-IN-1 WATER GALLON RINSING, FILLING, CAPPING MACHINE – 100BPH

This PLC-controlled 5-gallon automatic bottle filling machine combines bottle rinsing, filling, and capping in one unit

Rinse Parts: Transmission Flush: Utilizes a support frame, drive motor, and drive bearing to move bottles into the washing station for cleaning.

Water Tanks: Includes two stainless steel tanks for collecting disinfectant and purified water used in the washing process. Water levels are monitored to ensure proper solution levels.

Rinse Water: Utilizes food-grade water tubes to separate disinfectant and sterile water for washing and filling. Solenoid valves control the flow of water, shutting off after cleaning or filling is complete.

Filling and Sealing: Bottle Push and Filling System: Utilizes a cylinder and stainless steel rack to push bottles into position for filling. The filling system includes stainless steel filling heads and solenoid valves for precise filling.

Cap Management and Sealing: Caps are guided into position and set on bottle mouths using a slide track system. A gland system seals the bottles, with adjustments for different bottle sizes.

Bottle Conveyor System: Moves bottles through the filling and sealing process, guiding them to the next stage and ultimately out of the machine.

Electrical System: Consists of a programmable logic controller (PLC), AC contactors, air switches, and other components to control machine operations.

Pneumatic System: Includes cylinders, pneumatic solenoid valves, and control boxes to manage pneumatic functions.
