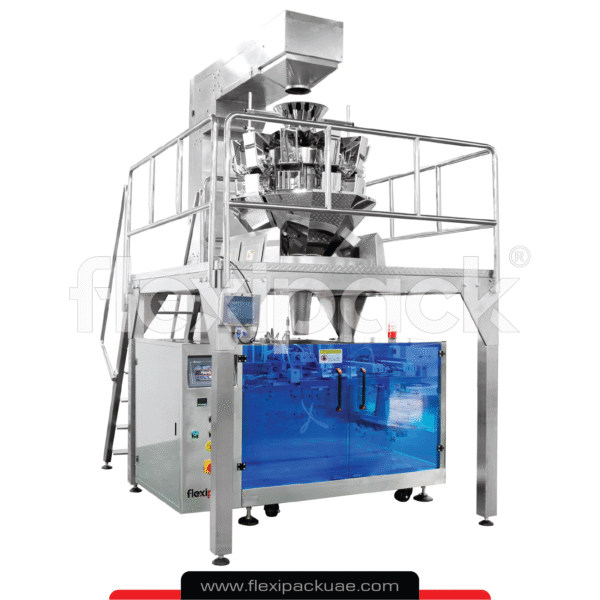

AUTOMATIC LINEAR PICK FILL SEAL MULTIHEADS DOYPACK PACKING MACHINE

🟥 Description:

This machine is suitable for packing all kind of dry granule products. Like dry fruits, nuts, sugar, salt, beans, candy, chips snacks, seeds, chemical particles and so on in to premade bags.



🟥 Features:

  • Multiple working station to meet full automatic process of bag pickup, date printing, bag opening, filling, bag arranging, sealing and output.
  •  PLC and touch screen control system.
  •  Customized model available for various kinds of bag shapes and bag sizes like doypack zipper bag, 4 side seal bag, stand up bag and irregular bag, etc.

Technical Specifications

Model FTM-DPW210 FTM-DPW260 FTM-DPW320
Bag Size W: 90-210

L: 110x330mm

W: 150-260

L: 150-400mm

W: 200-320

L: 150-500mm

Speed Upto 30bags/min Upto 20bags/min Upto 20bags/min
Measuring range 50-1000ml 200-2000ml 500-3000ml
Power 3.5Kw
Voltage 220V 1Phase 50/60Hz
Compressed Air 8CFM @ 6bar pressure
Machine Dimension 2150x1350x300mm 2450x1350x1350mm 2800x1350x1350mm
