🟥 Description:
Automatic MAP modified atmosphere packaging machine equipped with Gas Flushing System (MAP), Vacuuming System (Skin Pack) or both, suitable for packing fresh vegetables, fresh meat, seafood, cooked meals and so on.

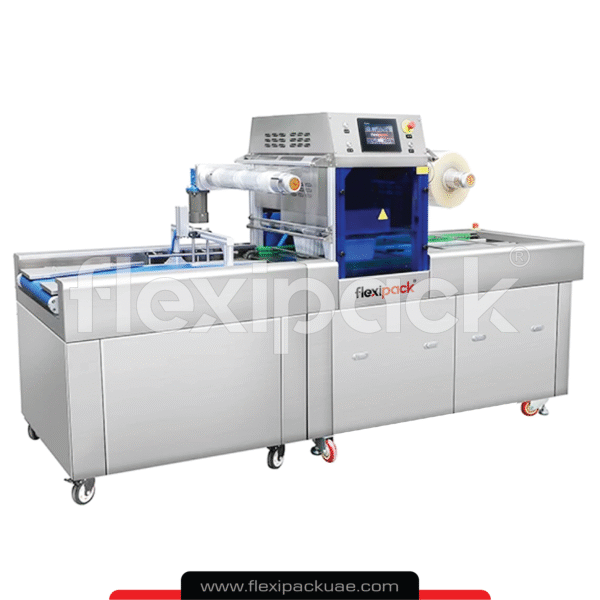

A high efficiency MAP (Modified Atmosphere Packaging) production line tray sealing machine. Interchangeable molds for various functions in one machine. By changing the molds.
🟥 Functions:
|
Model |
FP580AT-E | FP580AT-V | FP630AT-E | FP630AT-V | FP730AT-E | FP730AT-V |
|
Type |
Air flow replacement | Vacuum displacement | Air flow replacement | Vacuum displacement | Air flow replacement |
Vacuum displacement |
| Output |
6-7cycles/min |
4-5cycles/min | 6-7cycles/min | 4-5cycles/min | 6-7cycles/min |
4-5cycles/min |
| Vacuum displacement |
– |
100m3/hour | – | 200m3/hour |
200m3/hour |
|
| Max film roll width |
W: 580mm, Dia: 220mm |
W: 630mm, Dia: 220mm |
W: 730mm, Dia: 220mm |
|||
| Max tray size |
230 x 140 x 60mm x 3 Trays 230 x 225 x 60mm x 2 Trays 230 x 480 x 60mm x 1 Tray |
260 x 170 x 80mm x 3 Trays
260 x 280 x 80mm x 2 Trays 260 x 590 x 80mm x 1 Tray |
260 × 140 × 80mm x 4 Trays 260 x 190 x 80mm x 3 Trays 260 x 310 x 80mm x 2 Trays 260 x 650 x 80mm x 1 Tray |
|||
| Power | 2.5Kw | 5.5Kw | 3Kw | 7.5Kw | 3.5Kw |
10Kw |
