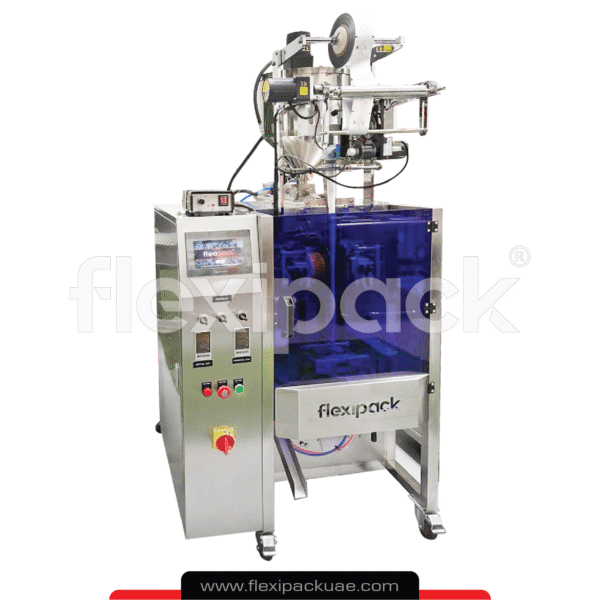

AUTOMATIC MINI VFFS LIQUID/CREAM STICK PACKING MACHINE

🟥 Description:

The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of liquids in special-shaped bags.

🟥 Features:

  • Automatic bag forming, Date & batch number printing, Volume measuring, filling, sealing, cutting.
  • The touch screen operation, PLC control, servo motor to control the bag length, stable performance, easy to adjust and accurate detection.
  • Packing material: PE composite film, such as: pure aluminum, aluminum plating, nylon, etc.
  • Servo controlled bag pulling.
  • Customized bag shape molds available.

Technical Specifications

Model FTM-220Y FTM-220YJ
Output 20-40Bags/min.
Hopper 30Ltr Hopper 30Ltr Hopper with Heating & Stirrer Funtion
Air required 8CFM @ 6Bar Pressure
Filling Range 5-100ml
Max Bag size (WxL) 15-100mm x 30-180mm
Max. film width 220mm
Voltage 1Phase 220V 50/60HZ
