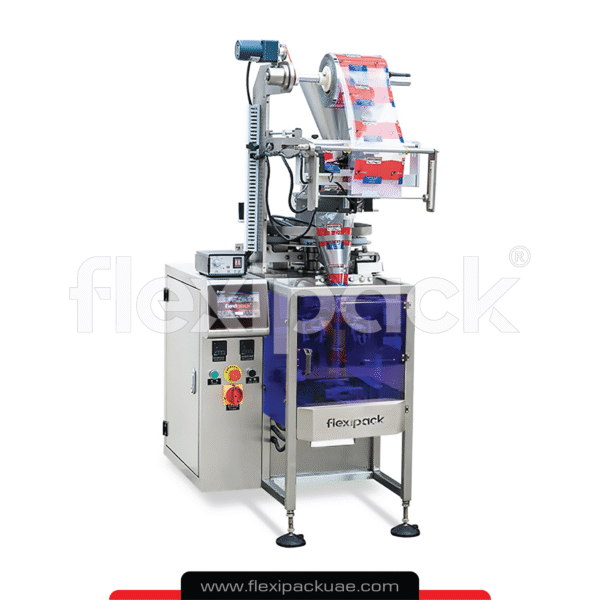

AUTOMATIC MINI VFFS VOLUMETRIC CUPS FILLING MACHINE

🟥 Description:

Our Mini VFFS machine with volumetric cup filler is suitable for the packaging of granular products like green peas, seeds, peanuts, nuts etc.

🟥 Features:

  •  Automatic production line from product measurement, bag filling, data printing to packaged bag discharge, ensuring maximum packaging efficiency.
  •  Reasonable machine design, robust structure, compact footprint and reliable performance.

Technical Specifications

Model FTM-300GC FTM-300GS
Type Center Sealing Side Sealing
Filling Range 30gm – 150gm (Need changeover parts)
Max Bag size (WxL) 30-120mm x 50-140mm
Max. film width 300mm
Output 40Bags/min
Voltage 220V 1Phase 50Hz
Power 1.5Kw
Air required 8CFM @ 6Bar Pressure
