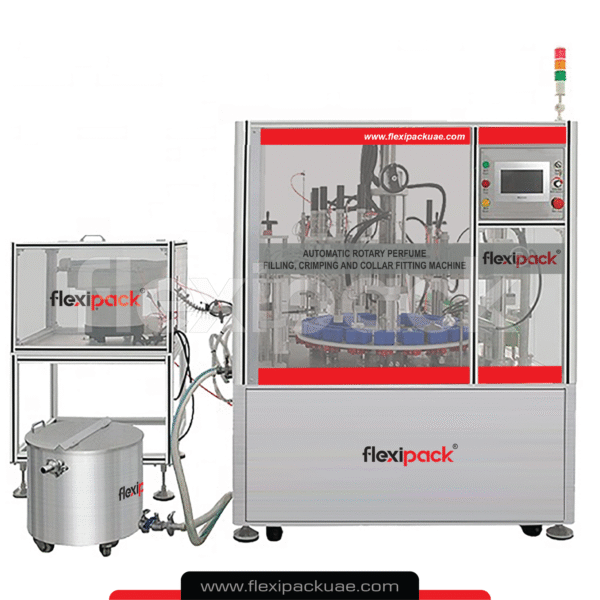

AUTOMATIC PERFUME FILLING, CRIMPING AND COLLAR FITTING MACHINE

🟥 Description:

The model FTM-60G Perfume filling crimping collaring equipment with vacuum cleaning system is an automatic 8 station perfume filling and crimping machine, adopting PLC programmable control. The compact structure and flexible working mode meet different production requirement.

🟥 Features:

  •  PLC Touch screen control
  •  2sets of rapid filling pump and 1 set of vacuum filling nozzle
  •  Automatic spray pump inserting device and crimping unit.
  •  Automatic collar cap inserting device and collar pressing unit.
  •  1set of adjustable pucks for regular shape bottles
  •  IN & OUT conveyor belt

Technical Specifications



Model FTM-60G
Filling volume Upto 100ml
Output 25-30bottle/min
Suitable Bottles sizes Multiple bottles compatible by changing the mould
Voltage 1Phase 220V 50HZ
Power 2 Kw
Air required 0.8Mpa
Machine dimension 2500*1100*1100mm
