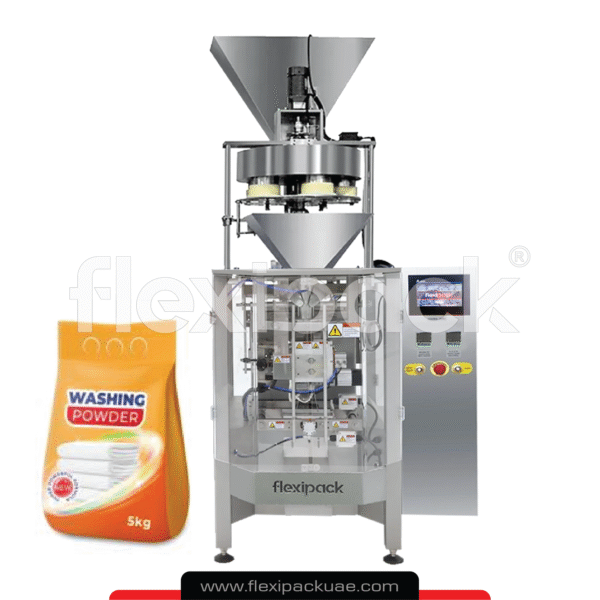

AUTOMATIC VFFS VOLUMETRIC CUPS FILLING MACHINE

🟥 Description:

Our VFFS machine and volumetric cup filler, which is widely used in the packaging of food granules, washing powder etc. in pillow bags.



🟥 Features:

  • The photo eye control mechanism and stepper-motor-driven film drawing system with a frequency control achieve high stability, low noise and low failure rate.
  • Automatic production line from product measurement, bag filling, data printing to packaged bag discharge, ensuring maximum packaging efficiency.
  • Reasonable machine design, robust structure, compact footprint and reliable performance.
  • Handle punch hole (Optional)
  • Gusseted Bags (Optional)

Technical Specifications

Model FTM-B420C FTM-B520C FTM-B720C
Max Bag size (WxL) 200x300mm 250x350mm 350x450mm
Max. film width 420mm 520mm 720mm
Output Upto 60 bpm Upto 50 bpm Upto 40 bpm
Voltage 380V 3Phase 50Hz
Power 2.2 Kw 2.2 Kw 2.4 Kw
Air required 8CFM @ 6Bar Pressure
