HYDRAULIC DRUM PRESS MACHINE (DRUM EXTRUDER)

🟥 Description:

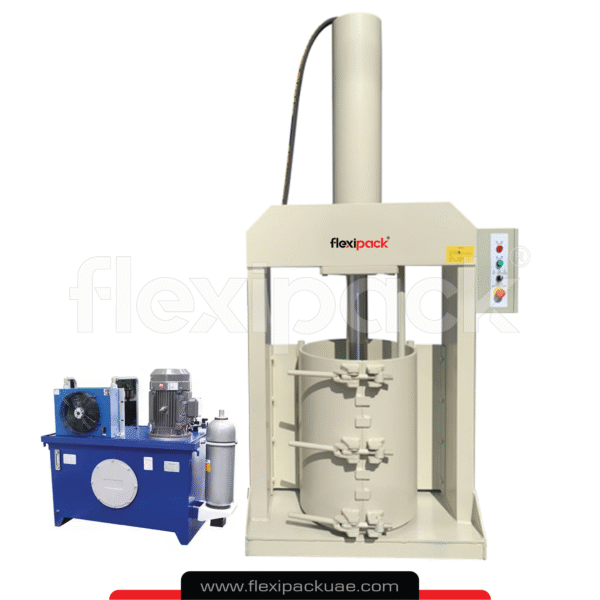

Hydraulic extruding machine is designed in the need of packing thick stuff, such as silicon sealant, glass adhesive. The machine has solid frame and hydraulic fluctuating. It is composed of standing base, hydraulic lift apparatus, hydraulic station electric panel. A rubber pipe is connected with the discharge mouth to connect with the filling machine. To work with the piston rod on the filling machine, the plate makes up-down movements under hydraulic pressure in the barrel. Extruding system: the material is extruded by hydraulic pressure system with pressure of at least 45T. It is suitable for standard 200L drum.

🟥 Features:

Technical Specifications

Model  FTM-HDP200
Voltage  3Phase 380V 50Hz
Power  5.5Kw
Suitable for  200L Drum
Hydraulic pressure  45T or 60T
Operation  Button
Input dimension  2.5 inch – Cam Lock fittings
Weight  Approx. 1200Kg
Dimension (LxWxH)  1820x850x2800mm
