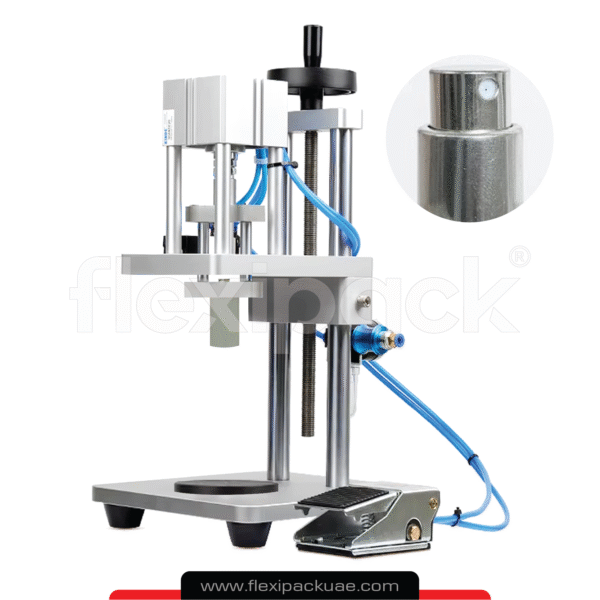

PNEUMATIC COLLAR CAP PRESSING MACHINE

🟥 Description:

Pneumatically operated semi automatic Perfume Collar Cap Pressing Machine FTM-CP02 is recommended for small-medium scale production.  Bottles are placed on the stand and by a simple lever movement and at the same time pressing the start button, the crimping action starts. Suitable for standard diameters 11, 13, 15, 17, 18, 20, 21, 22mm.

🟥 Features:

🔸 Compact structure.

🔸 Good sealing performance.

🔸 Accurate cap positioning without abrasion on the surface.

🔸 Pneumatic control is adopted.

🔸 Easy operation and maintenance.

Technical Specifications

Model FTM-CP02
Air Pressure 0.4-0.6MPa
Air Consumption 0.5m3/min
Collar Cap Diameter Customized  as per client requirement
Output 5-20 Bottles/min
Height of Bottle Upto 200mm
Machine size (L xWx H) 300x250x700mm
