ROBOTIC PALLETIZER

🟥 Description:

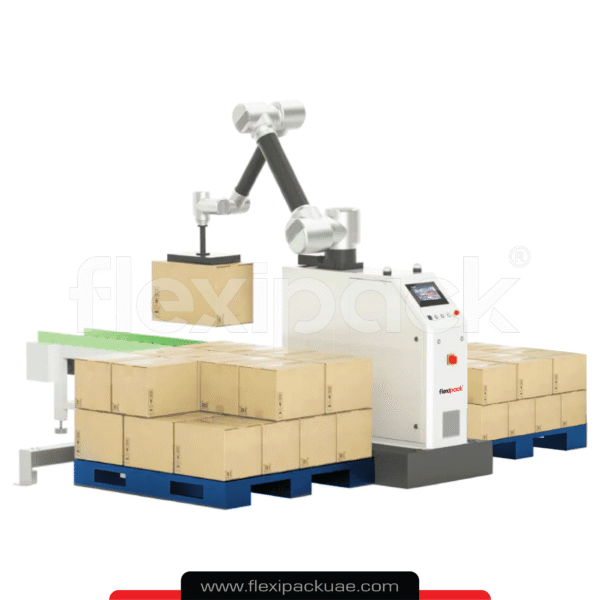

The Compact Series Robotic Palletizer is the smallest fully automated lineup of standard robotic palletizers. The RPC-C is ideal for a single production line stack on two pallets at a time.



🟥 Features:

  • Servo Technology.
  • Easy to Use (User-friendly Interface)
  • Payload up to 40Kgs
  • Speed up to 12CPM
  • Stack Height up to 2300mm
  • Small Footprint
  • Two Palletizing Zones
  • Drag-and-Drop Configuration.

Technical Specifications

Model No.

FTM-RP16 FTM-RP20 FTM-RP25 FTM-RP30 FTM-RP40
Power 3KW 3KW 3.25KW 3.5KW

4.75KW

Base Style Lifting Lifting Lifting Lifting

Lifting

Max Stack Height (Including Pallet) 2300mm 2300mm 2100mm 2250mm

2250mm

Max Load Capacity 16KG 20KG 25KG 30KG

40KG

Pallet Size ≤ 1300×1300mm ≤ 1300×1300mm ≤ 1200×1200mm ≤ 1250×1250mm

≤ 1250×1250mm

Working Radius 1900mm 1900mm 1600mm 1750mm

1750mm

Footprint

L3590*W1735mm L3590*W1735mm L3590*W1735mm L3590*W1735mm

L4190*W1735mm

Max Speed

8-12 Cartons/min 8-10 Cartons/min 8-10 Cartons/min 8-10 Cartons/min

4-6 Cartons/min

Power Supply 380V 3Phase 50Hz 380V 3Phase 50Hz 380V 3Phase 50Hz 380V 3Phase 50Hz

380V 3Phase 50Hz
