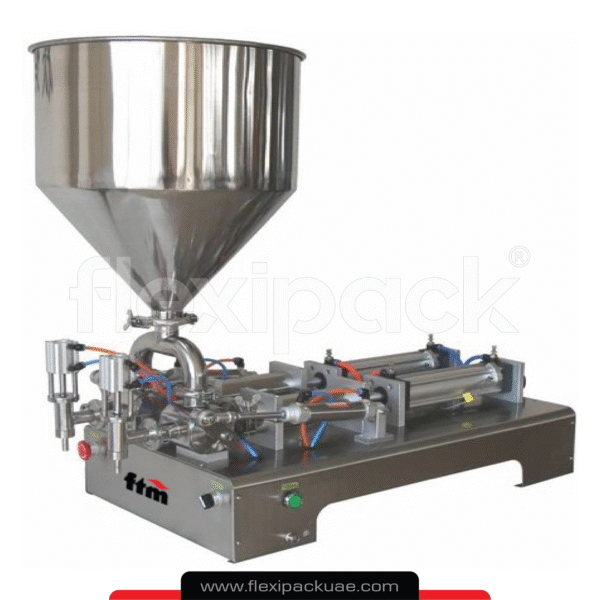

SEMI AUTOMATIC 2 NOZZLE PISTON FILLING MACHINE

🟥 Description:

Our Semi Automatic Piston Filling Machine is suitable for high viscosity, Paste, Thick sauce with particles. Also used for liquid products, Jams, Sauces, Peanut butter, Ketchup and so on.

We can customize the machine as per client requirements.



🟥  Features:

  • Components and parts are made out stainless steel metal to guarantee high impact resistance, negligible maintenance cost, sturdy construction and durability.
  • Easy to operate and simple to maintain.

Technical Specifications

Model: FTM-SPF2-H10

No of filling heads: 2

Power: 0.5Kw

Air Pressure: 0.4-0.7Mpa

Machine Material: SS304 & PTFE O-Rings

Filling Volume Range: : 20-500ml or 100-1000ml

Filling Speed: 10-25Bottles/min

Filling accuracy: ±1%





Model: FTM-SPF2-H50

No of filling heads: 2

Power: 0.5Kw

Air Pressure: 0.4-0.7Mpa

Machine Material: SS304 & PTFE O-Rings

Filling Volume Range: 500-2500ml or 800-5000ml

Filling Speed: 7-20Bottles/min

Filling accuracy: ±1%
