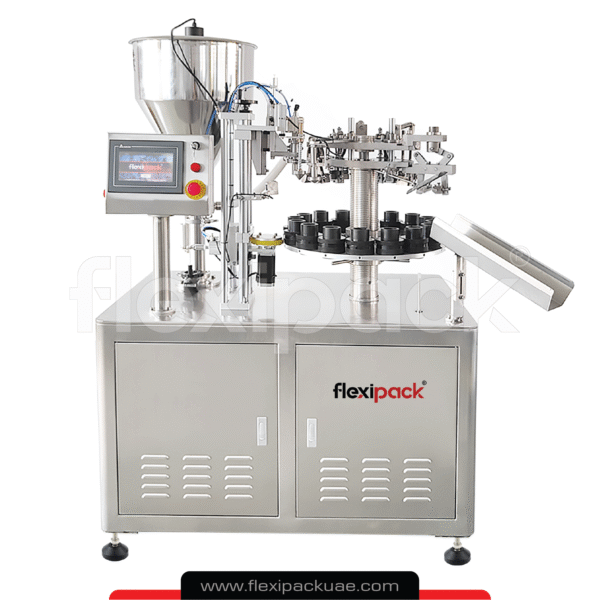

SEMI AUTOMATIC ALUMINUM TUBE FILLING AND SEALING MACHINE

🟥 Description:

This Machine is Widely used for food, pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing.



🟥 Features:

  •  Manually tube feeding, Automatic positioning, Filling, Sealing with coding, Output.
  •  Cam indexing system could position precisely for ten working stations.
  •  Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
  •  PLC with touch screen control system with alarm system, could directly view the alarm information on the touch screen, could locate the problem and solve immediately.
  •  No tube, no fill, no tube, no seal function, reducing the machine and mould loss.
  •  Adopts Anti-dripping filling nozzle.

Technical Specifications

Model FTM-006
Frequency 20kHz
Sealing Capacity 20-25pcs/min
Tube Height 30-220mm, Diameter 15-50mm
Filling Range 5-60ml, 10-120ml, 25-250ml, 50-500ml
Air pressure 0.6Mpa
Filling Accuracy ±1%
Voltage 1Phase 220V 50Hz
Power 2.6Kw
Machine Dimension 950x1150x1650mm
