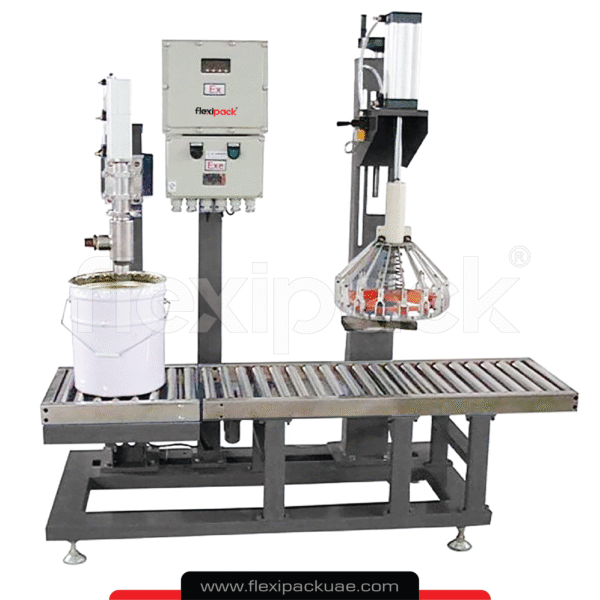

SEMI AUTOMATIC METAL BUCKET FILLING AND CAP CRIMPING MACHINE

Description:

This weighing filling machine is specifically designed for weighing and filling large capacity liquid or paste products into buckets, such as oil paints, latex paint, and thinner. It also features an explosion-proof function, making it suitable for use with flammable products.



Features:

  •  Automatic metering liquid filling machine with gland function
  •  Equipped with explosion proof control box
  •  Digital key settings
  •  Tare detection starts all-round barrel filling
  •  Gross weight / net weight (automatic peeling per barrel) and other filling methods
  •  Automatic zero tracking
  •  Automatic correction of weight error
  •  Power on automatic reset, power off protection device
  •  Emergency stop protection device
  •  Real time operation status indication

Technical Specifications

Model FTM-PFCC30
Filling specification  1-30L
Filling speed  2-6 barrels /min (depends on material flow rate)
Structure & Contact Parts 304 stainless steel
Anti dripping filling head Φ 12mm outlet
Applicable Bottle height 180-400mm
Power supply 1Phase 220V 50Hz
Compressed Air  0.8MPa
Approx Machine size  1700x640x1500mm
Net Weight  150KG
