SEMI AUTOMATIC CARTON SEALING MACHINE TOP AND SIDE BELT (FTM- MHFJ1A)

🟥 Description:

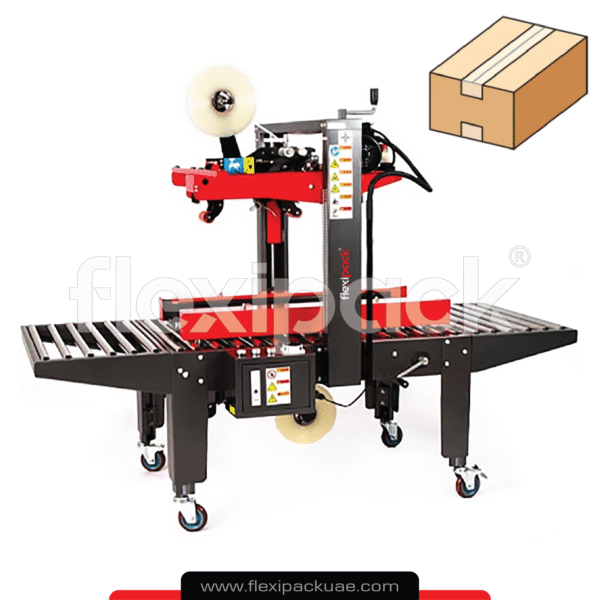

Semi automatic carton sealing machine uses adhesive tape to seal the bottom and top. Equipped with two free roller conveyors indeed and out feed. Two motorized side drive belts. Special for small and medium cases. Carton size : Long 15-unlimited cm. x Width 12-48 cm. x Height 12-48 cm. Roller table made of stainless steel. Easy adjustment in height and width, adjustable tape tension adjustable manually.



🟥 Application: carton, corrugated box, paper crate packaging toy, plastic product, food products, confectionery products etc.



🟥 Features:

  •  Top and Side drive belts
  • Top and Bottom Tape Head
  •  Blade guards
  •  Crank Handle adjustments
  •  Leg height adjustment 240mm

Technical Specifications

Model  FTM-MHFJ-1A
Power  220V 50Hz 1Phase / 0.6Kw
Capacity  30cartons/min
Box length  150 – mm
Box width  120 – 480mm
Box Height  120 – 480mm
Tape  PVC or PP, Width max 50mm, core
Work height  500-710mm
