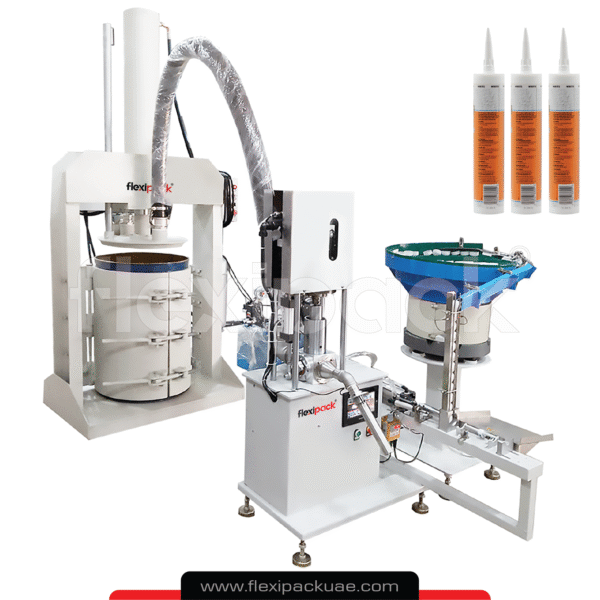

SEMI AUTOMATIC VERTICAL CARTRIDGE SILICONE SEALANT FILLING MACHINE

🟥 Description:

Semi Automatic Cartridge Filling Machines is widely used for filling silicone sealant, PU sealant, MS sealant, adhesive, butyl sealant etc. When customer use this filling machine, the process of chemical products filling are by manual, but the plunger conveying and capping are automatically. This filling machine has built-in measuring cylinder, with the advantages of adjusting easily and precise measuring.



🟥 Features:

  •   Easy volume adjustment.
  •   Plunger conveying automatically
  •   Plunger inserting automatically
  •   Warning Alarm and protecting function.
  •   Touch screen interface

Technical Specifications

Model FTM-SCP-1A
No of filling Heads  1
Speed  20-30pcs/min
Power Supply 380V/50HZ/3Phase
Air Supply  0.4-0.6MP
Filling Volume  Max 350ml (adjustable)
Volume Precision  ±1%
Tube Diameters  40-60mm (customized)
Dimensions (L×W×H)  1800x1100x1450mm
Hydraulic Press Capacity 200Ltr
Diameter of press plate  350mm
Motor power  4kw
Lifting height  900mm
Lifting method  Hydraulic pressure
Dimensions (L×W×H)  1000x900x2200mm
