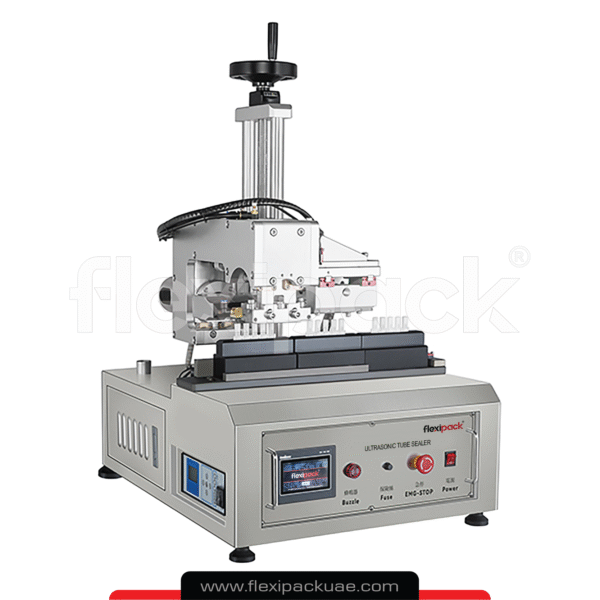

SEMI AUTOMATIC ULTRASONIC STRIP TUBE SEALING MACHINE

🟥 Description:

Manual Ultrasonic Tube Sealer Machine is Widely used for food, pharmaceutical, cosmetics, chemical and other plastic, PE, aluminum laminated tube filling and sealing.

🟥 Features:

  •  Adopts ultrasonic sealing technology, no need warm up time, more stable and neat sealing, no distortion and low reject rate less than 1%.
  •  PLC with touch screen control system, providing friendly operation experience.
  •  Suitable for strip tube, normal tube, curved tube or customer-made shape tube sealing and trimming.

Technical Specifications

Model No.  FTM-UST250M
Frequency 20Khz
Voltage  1Phase 220V 50hz
Power  2600W
Working pressure  0.5-0.6 MPa
Tube diameter 20 to 50mm
Tube height  50 to 250mm
Production capacity  about 8-12 pcs/min
