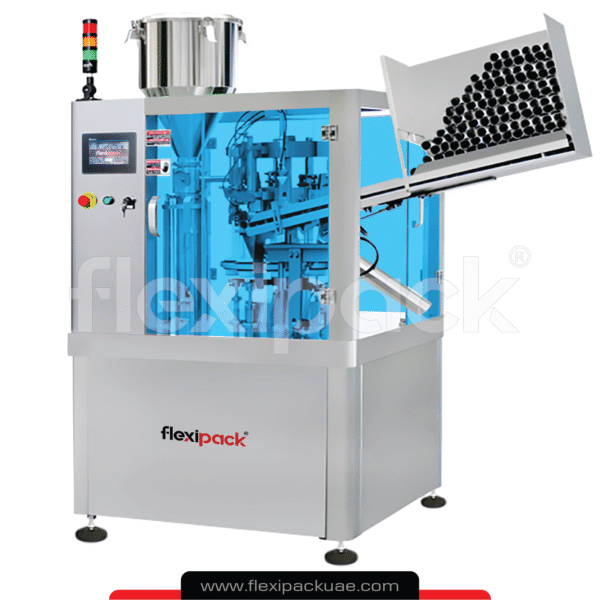

AUTOMATIC TUBE FILLING AND SEALING MACHINE

🟥 Application:

This machine is widely used in the food, pharmaceutical, chemical industries.



🟥 Features:

  •  Easy to operate and maintain.
  •  Automatic positioning, filling, welding, cutting and trimming, printing code in one time.
  •  Stainless steel machine body, strong and beautiful looks,
  •  Sealing mould can be customized according to customer requirements. Can seal many size of tubes.

Technical Specifications

Model FTM-80A FTM-80B
Material Metal /Aluminum tube Plastic tube
Capacity 60-80tubes/min
Tube Size Height 30-220mm, Diameter 15-50mm
Filling Range 5-60ml, 10-120ml, 25-250ml
Filling accuracy ±1%
Heat sealing power 3.3kw
Voltage 220V 50Hz
Air pressure 0.6Mpa
