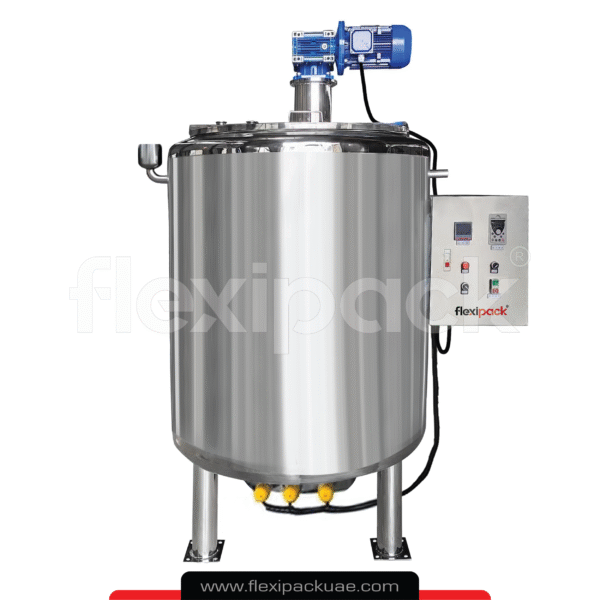

JACKETED MIXING TANK

🟥 Description:

Our jacketed mixing tanks are available in different sizes which will satisfy your production needs. These mixing tanks are designed to provide the best mixing efficiency while controlling the temperature of the materials being processed.



🟥 Uses And Applications:

Below are some of the different fields where a Jacketed Mixing Tank is required:

Food Industry: Suitable for ingredient mixing and predisposed to temperatures required for pasteurization, fermentation, and homogenization.

Cosmetics and Pharmaceutical: Keeping in mind sensitive active substances, an ideal blend with controlled temperature is required.

Chemical Industry: Emulsification, reaction, or synthesis processes blend many available chemicals under controlled temperature.

Laboratory And Bioscience: Precise temperature regulation and mixing are ideal for small batch production or pilot runs.

Using a Jacketed Mixing Tank means your goods will be mixed, heated, and treated with care and efficiency.



🟥 Benefits of Our Jacketed Mixing Tanks

With the aid of the latest technologies, we are able to meet the most complex production requirements around the world. In addition, the best materials and our tailor made options allow us to confidently say that your investment will be high-performing, reliable, and enduring.



Customization: You can add the appropriate power and heating configuration along with the material needed, 316L or 304 stainless steel.

Quality Assurance: Each tank is tested extensively to ensure they meet our standards as well as your requirements. Each unit is designed to perform optimally in a high-demand environment.

Guaranteed Assistance: Our professional assistance is included with every tank to guide you through the installation and maintenance processes to achieve the best performance from your tank.

Technical Specifications

Model

FTM-JMX1000

FTM-JMX2000

Gross Volume

1200Ltr

2200Ltr

Tank Dimension

OD: 1000mm

OD: 1350mm

Shell Height: 1500mm

Shell Height: 1500mm

Dish end: 250mm

Dish end: 250mm

Gear Box

60RPM

60RPM

Main Motor Power

2HP or 3HP

3HP or 5HP

Electric Heater Power

6Kw x 3

9Kw x 3

Material Thickness

Shell: 3mm SS304 / SS316L

Shell: 3mm SS304 / SS316L

Jacket 1.5mm SS304

Jacket 2mm SS304

Outer layer 1.5mm SS304

Outer layer 1.5mm SS304

Voltage

3Phase 380V 50Hz

Top

Flat Half open or Dish end with manhole Airtight design (According to client requirement).

Bottom

Dish end 3mm

Discharge

Bottom valve discharge.

Outlet

2″

Inside Vessel work pressure

normal pressure

Agitator Blade design

Customized as per client requirement.
